Управляемый коммутатор GS-4210-24UP4C уровня L2, 24 порта 10/100/1000T с Ultra PoE, 4 порта TP/SFP, бюджет PoE 600 Вт, консольный порт, питание 100~240V AC, установка в стойку, 0С~50C
Конструкция |
Металлический корпус |
Охлаждение |
корпусные вентиляторы |
Возможности монтажа |
установка в стойку |
Общее количество портов Ethernet |
28 |
Порты Gigabit Ethernet |
4 |
Порты Gigabit Ethernet с функцией PoE |
24 |
Порты SFP |
4 x 100/1000BASE-X SFP (совмещены с медью) |
Бюджет PoE |
600 Вт |
Мощность на порт PoE |
10 x 60 Вт, 20 x 30 Вт, 24 x 15 Вт |
Консольный порт |
RS-232 (RJ45) |
Пропускная способность |
56 Гбит/с |
Тип коммутатора |
Store and Forward |
Таблица адресов |
8 К |
Управление потоком |
IEEE 802.3x pause frame for full-duplex, Back pressure for half-duplex |
Тип источника питания |
Внутренний |
Диапазон входного напряжения |
100~240 AC В |
Потребляемая мощность |
140 Вт |
Рабочая температура, град. C |
0 ~ 50 |
Относительная влажность, % |
5 ~ 90 |
Габаритные размеры (ДxШxВ), мм |
440 x 300 x 44 |
Вес, кг. |
4,5 |
A New Generation Ultra PoE Managed Switch with Advanced L2/L4 Switching and Security
PLANET GS-4210-24UP4C is a cost-optimized, 1U, Gigabit Ultra PoE Managed Switch featuring PLANET intelligent PoE functions to improve the availability of critical business applications. It provides IPv6/IPv4 dual stack management and built-in L2/L4 Gigabit switching engine along with 24 10/100/1000BASE-T ports featuring 60-watt Ultra PoE and 4 additional Gigabit TP/SFP combo ports. With a total power budget of up to 600 watts for different kinds of PoE applications, respectively, the GS-4210-24UP4C provides a quick, safe and cost-effective Ultra PoE network solution for small businesses and enterprises.
60 Watts of Power over 4-pair UTP

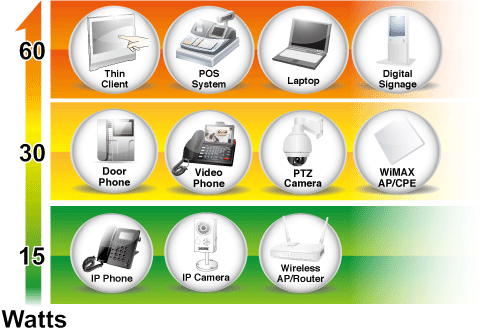

The GS-4210-24UP4C Ultra PoE solution adopts the IEEE 802.3at/af standard. Instead of delivering power over 2-pair twisted UTP – be it end-span (Pin 1,2,3 and 6) or mid-span (Pin 4,5,7 and 8), it provides the capability to source up to 60 watts of power by using all the four pairs of standard Cat.5e/6 Ethernet cabling. In the new 4-pair system, two PSE controllers will be used to power both the data pairs and the spare pairs. It can offer more PoE applications, such as:
- PoE PTZ speed dome
- Any network device that needs higher PoE power to work normally
- Thin-client
- AIO (All-in-One) touch PC
- Remote digital signage display
Built-in Unique PoE Functions for Powered Devices Management
As it is the managed PoE switch for surveillance, wireless and VoIP networks, the GS-4210-24UP4C features the following special PoE management functions:
- PD alive check
- Scheduled power recycling
- PoE schedule
- PoE usage monitoring
Intelligent Powered Device Alive Check

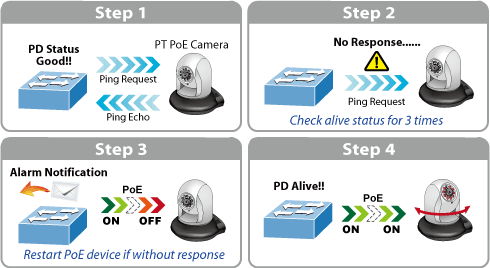

The GS-4210-24UP4C can be configured to monitor connected PD (Powered Device) status in real time via ping action. Once the PD stops working and responding, the GS-4210-24UP4C will resume the PoE port power and bring the PD back to work. It will greatly enhance the network reliability through the PoE port resetting the PD’s power source and reducing administrator management burden.
Scheduled Power Recycling
The GS-4210-24UP4C allows each of the connected PoE IP cameras or PoE wireless access points to reboot at a specified time each week. Therefore, it will reduce the chance of IP camera or AP crash resulting from buffer overflow.
Ultra PoE Networking Solution

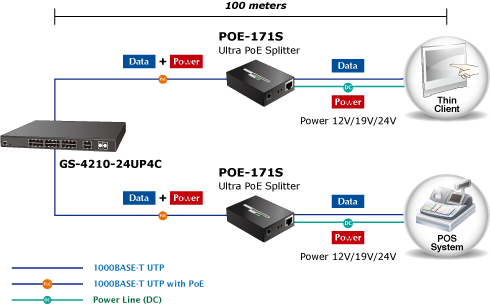

PLANET GS-4210-24UP4C can easily build an Ultra PoE networking solution on the cyber security system for the enterprises. For instance, it can work with the POS system and thin client to perform comprehensive security protection for today’s businesses. The GS-4210-24UP4C and Ultra PoE Splitter - POE-171S, operate as a pair to provide the easiest way to power your Ethernet devices which need high power input. Receiving data and power from the GS-4210-24UP4C, the POE-171S separates digital data and power into three optional outputs (12V, 19V or 24V DC) to non-PoE devices such as laptops, Thin Client, POS System, PTZ (Pan, Tilt & Zoom) network cameras, PTZ speed dome, color touch-screen IP phones, multi-channel wireless LAN access points and other network devices at distance up to 100 meters.
Multiple Spanning Tree Protocol with PoE IP Office Solution for SMBs and Workgroups

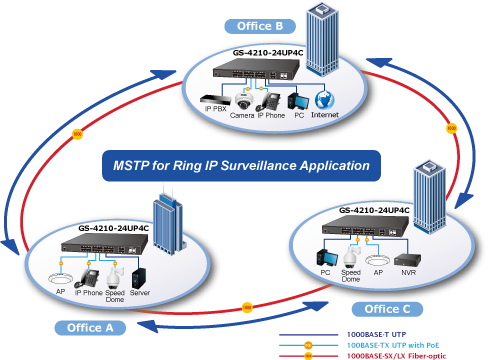

The GS-4210-24UP4C features strong, rapid self-recovery capability to prevent interruptions and external intrusions. It incorporates Multiple Spanning Tree Protocol (802.1s MSTP) into customer’s automation network to enhance system reliability and uptime. Applying the IEEE 802.3af/IEEE 802.3at/Ultra PoE standard, the GS-4210-24UP4C can directly connect with any IEEE 802.3at/Ultra PoE end-nodes like PTZ (Pan, Tilt & Zoom) network cameras and speed dome cameras. The GS-4210-24UP4C can easily help enterprises with the available network infrastructure to build wireless AP, IP camera and VoIP systems where power can be centrally-controlled.

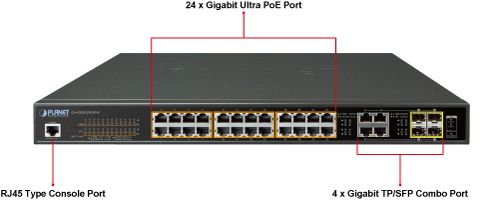

Physical Port
- 28 10/100/1000BASE-T Gigabit RJ45 copper ports with 24-port IEEE 802.3at/af/Ultra PoE injector
- 4 100/1000BASE-X mini-GBIC/SFP slots, shared with port-25 to port-28 compatible with 100BASE-FX SFP
- RJ45 console interface for switch basic management and setup
Power over Ethernet
- Complies with IEEE 802.3at Power over Ethernet Plus, end-span/mid-span PSE
- Backward compatible with IEEE 802.3af Power over Ethernet
- Up to 24 ports of IEEE 802.3af/IEEE 802.3at/Ultra PoE devices powered
- Supports PoE power up to 60 watts for each ultra PoE port
- Auto detects powered device (PD)
- Circuit protection prevents power interference between ports
- Remote power feeding up to 100 meters
- PoE management
- Total PoE power budget control
- Per port PoE function enable/disable
- PoE port power feeding priority
- Per PoE port power limitation
- PD classification detection
- PD alive check
- PoE schedule
Layer 2 Features
- Prevents packet loss with back pressure (half-duplex) and IEEE 802.3x pause frame flow control (full-duplex)
- High performance Store and Forward architecture, broadcast storm control, and runt/CRC filtering that eliminates erroneous packets to optimize the network bandwidth
- Supports VLAN
- IEEE 802.1Q tagged VLAN
- Provider Bridging (VLAN Q-in-Q) support (IEEE 802.1ad)
- Protocol VLAN
- Voice VLAN
- Private VLAN
- Management VLAN
- GVRP
- Supports Spanning Tree Protocol
- STP (Spanning Tree Protocol)
- RSTP (Rapid Spanning Tree Protocol)
- MSTP (Multiple Spanning Tree Protocol)
- STP BPDU Guard, BPDU filtering and BPDU forwarding
- Supports Link Aggregation
- IEEE 802.3ad Link Aggregation Control Protocol (LACP)
- Cisco ether-channel (static trunk)
- Provides port mirror (many-to-1)
- Loop protection to avoid broadcast loops
Quality of Service
- Ingress and egress rate limit per port bandwidth control
- Storm control support
- Broadcast/Unknown unicast/Unknown multicast
- Traffic classification
- IEEE 802.1p CoS
- TOS/DSCP/IP precedence of IPv4/IPv6 packets
- Strict priority and Weighted Round Robin (WRR) CoS policies
Multicast
- Supports IPv4 IGMP snooping v2 and v3
- Supports IPv6 MLD snooping v1, v2
- IGMP querier mode support
- IGMP snooping port filtering
- MLD snooping port filtering
Security
- Authentication
- IEEE 802.1X port-based network access authentication
- Built-in RADIUS client to cooperate with the RADIUS servers
- RADIUS/TACACS+ login user access authentication
- Access control list
- IPv4/IPv6 IP-based ACL
- MAC-based ACL
- MAC security
- Static MAC
- MAC filtering
- Port security for source MAC address entries filtering
- DHCP snooping to filter distrusted DHCP messages
- Dynamic ARP Inspection discards ARP packets with invalid MAC address to IP address binding
- IP source guard prevents IP spoofing attacks
- DoS attack prevention
- SSH/SSL
Management
- IPv4 and IPv6 dual stack management
- Switch management interface
- Web switch management
- Telnet command line interface
- SNMP v1, v2c and v3
- SSH and SSL secure access
- User privilege levels control
- Built-in Trivial File Transfer Protocol (TFTP) client
- BOOTP and DHCP for IP address assignment
- System maintenance
- Firmware upload/download via https/TFTP
- Configuration upload/download through web interface
- Dual images
- Hardware reset button for system reboot or reset to factory default
- SNTP Network Time Protocol
- Cable diagnostics
- Link Layer Discovery Protocol (LLDP) and LLDP-MED
- SNMP trap for interface link up and link down notification
- Event message logging to remote Syslog server
- Four RMON groups (history, statistics, alarms and events)
- PLANET smart discovery utility
- Smart fan with speed control
Hardware Specifications |
|
Copper Ports |
28 x 10/100/1000BASE-T RJ45 auto-MDI/MDI-X port |
SFP/mini-GBIC Slots |
4 x 100/1000BASE-X SFP interface shared with port-25 to port-28 |
PoE Injector Port |
24 ports with 802.3at/af/Ultra PoE injector function with port-1 to port-24 |
Switch Architecture |
Store-and-Forward |
Switch Fabric |
56Gbps/non-blocking |
Switch Throughput@64Bytes |
41.67Mpps |
Address Table |
8K entries |
Shared Data Buffer |
4.1 megabits |
Flow Control |
IEEE 802.3x pause frame for full-duplex |
Jumbo Frame |
10K bytes |
Reset Button |
< 5 sec: System reboot |
LED |
PWR, SYS, LNK/ACT, PoE-in-use, 1000, FAN1, FAN2, PWR FAN, PoE PWR |
Power Requirements |
100~240V AC, 50/60Hz, auto-sensing |
Dimensions (W x D x H) |
440 x 300 x 44.5 mm, 1U height |
ESD Protection |
Contact Discharge 4KV DC |
Enclosure |
Metal |
Weight |
5062g |
Power Consumption/Dissipation |
740 watts (max.)/2525 BTU |
Fan |
4 x smart fan |
Power over Ethernet |
|
PoE Standard |
IEEE 802.3af/802.3at/Ultra PoE PSE |
PoE Power Supply Type |
End-span/Mid-span/UPoE |
PoE Power Output |
Per port 52V DC, 60 watts (max.) |
Power Pin Assignment |
End-span: 1/2(-), 3/6(+) |
PoE Power Budget |
600 watts (max.) |
PoE Ability PD @ 15 watts |
24 units |
PoE Ability PD @ 30 watts |
20 units |
PoE Ability PD @ 60 watts |
10 units |
Layer 2 Functions |
|
Port Mirroring |
TX/RX/both |
VLAN |
802.1Q tagged-based VLAN |
Link Aggregation |
IEEE 802.3ad LACP and static trunk |
Spanning Tree Protocol |
IEEE 802.1D Spanning Tree Protocol (STP) |
IGMP Snooping |
IGMP (v2/v3) snooping |
MLD Snooping |
MLD (v1/v2) snooping, up to 256 multicast groups |
Access Control List |
IPv4/IPv6 IP-based ACL/MAC-based ACL |
QoS |
8 mapping IDs to 8 level priority queues |
Security |
IEEE 802.1X port-based authentication |
Management Functions |
|
Basic Management Interfaces |
Web browser; Telnet; SNMP v1, v2c |
Secure Management Interfaces |
SSH, SSL, SNMP v3 |
SNMP MIBs |
RFC 1213 MIB-II |
Standards Conformance |
|
Regulatory Compliance |
FCC Part 15 Class A, CE, LVD |
Standards Compliance |
IEEE 802.3 10BASE-T |
Environment |
|
Operating |
Temperature: 0 ~ 50 degrees C |
Storage |
Temperature: -20 ~ 70 degrees C |
