GSD-908HP Planet Коммутатор 8-Port 10/100/1000T 802.3at PoE + 1-Port Gigabit Desktop Switch

GSD-908HP Planet Коммутатор 8-Port 10/100/1000T 802.3at PoE + 1-Port Gigabit Desktop Switch
15114.00 ₽
Производитель : Planet
Количество портов : 8

GSD-908HP - Неуправляемый коммутатор Gigabit Etherne , 8-портов 10/100/1000T 802.3at Power over Ethernet + 1 порт 10/100/1000T Desktop Switch С 120 Вт PoE бюджет, расположен в металлическом компактной корпусе.

Centralized Power Distribution for Ethernet Networking

The GSD-908HP, a new member in the PLANET 802.3af / 802.3at PoE Unmanaged Gigabit Ethernet Switch family, is an 8-port 10/100/1000T 802.3at Power over Ethernet + 1-port 10/100/1000T Desktop Switch with a total of 120 watts of PoE budget, which is an ideal solution to fulfilling the demand of sufficient PoE power for network applications with Gigabit Ethernet speed transmission. The eight 802.3af / 802.3at PoE Gigabit ports provide PoE power injector function which is able to drive 8 IEEE 802.3af compliant powered devices or 4 IEEE 802.3at compliant powered devices. The GSD-908HP also provides a simple, cost-effective and non-blocking Gigabit wire-speed performance. It comes with a metal compact housing, suitable for desktop deployment in SOHO office or department network application.

Perfectly Integrated Solution for PoE IP Camera and NVR System

Different from the general PoE Switch which usually comes with 12 or 24 PoE ports, the GSD-908HP provides eight 802.3af / 802.3at PoE Gigabit ports for catering to small scale of IP surveillance networks at a lower total cost. The GSD-908HP comes with high performance switch architecture and 120-watt PoE power budget. The recorded video files from 8 PoE IP cameras can be powered by the GSD-908HP and saved in the 8-channel NVR system or surveillance software to perform comprehensive security monitoring. For instance, one GSD-908HP can be combined with one 8-channel NVR and 8 PoE IP cameras as a kit for the administrators to centrally and efficiently manage the surveillance system in the local LAN and the remote site via Internet.

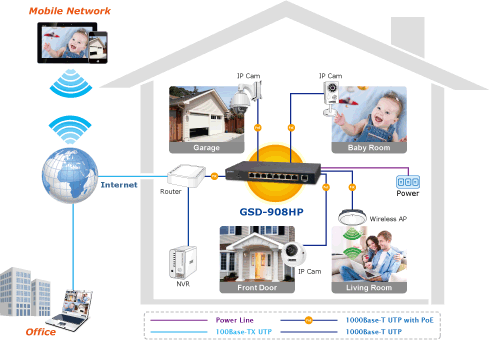

SOHO / HOME-Use Gigabit Ethernet PoE Network Deployment

With its expanded home-use feature, the GSD-908HP 802.3at PoE+ Switch helps SOHO / home users to create an integrated data, video, and powered network. The wireless AP and PoE IP camera devices work perfectly with the GSD-908HP, which injects power through the Ethernet cables, thus helping SOHO / home users to build a cost-effective and reliable PoE networking environment easily.

Ideal Solution for Securing IP Surveillance Infrastructure

Particularly designed for the growing popular IP Surveillance applications, the GSD-908HP 802.3at PoE Switch is positioned as a Surveillance Switch for quick and easy PoE IP camera deployment with power feeding. The GSD-908HP provides both 802.3af and 802.3at PoE functions along with 8 10/100/1000Base-T ports featuring 15.4-watt 802.3af and 30-watt 802.3at PoE in RJ-45 copper interfaces and 1 extra Gigabit TP interface supporting high-speed transmission of surveillance images and videos. The PoE Usage LED indicator on the left-hand side of the GSD-908HP front panel will light up when PoE Power Usage exceeds the maximum 120-watt PoE budget of the GSD-908HP.

IP Office Department / Workgroup PoE Switch

With the business office expansion, the additional telephones required could be installed at a much lesser cost via the implementation of PoE IP Telephony system than that of the traditional circuit wiring telephony system. The GSD-908HP PoE Ethernet Switch helps enterprises to create an integrated data, voice, and powered network. The IEEE 802.3af compliant IP phones can be installed without the need of an additional power cable because the power can be provided via the standard Ethernet cable from the connected GSD-908HP.

The Wireless AP group, PoE IP Phones and Analog Telephony Adapter work perfectly with the GSD-908HP which injects power through the Ethernet cables. With the GSD-908HP, IP Telephony deployment becomes more reliable and cost-effective, which helps enterprises save tremendous cost when upgrading from the traditional telephony system to IP Telephony communications infrastructure.



Производитель

Planet

Артикул

GSD-908HP

Основные характеристики

Интерфейс RJ-45

Соответствует IEEE 802.3, 10Base-T, IEEE 802.3 u 100Base-TX, IEEE 802.3 ab 1000Base-T

9-портовый 10/100/1000Mbps Gigabit Ethernet Switch

8-Port supports 51V DC power to PoE Powered Device(Порт 1 порт 8)

PoE

Соответствует IEEE 802.3 af / 802.3at Power over Ethernet End-Span PSE

До 8 IEEE 802.3 af устройствах

Поддерживает PoE питание до 15.4 Вт для каждого PoE порта

Питание до 4 IEEE 802.3af устройств

Поддерживает PoE питание до 30 Вт для каждого PoE порта

120 Вт с PoE бюджет

Автомотическое определение PoE устройст (PD)

Защита от помех между портами

Максимальное расстояние питания устройств - до 100м

Коммутация

10/100/1000Mbps Auto-Negotiation и Auto MDI/MDI-X

Flow control для Full Duplex и Back pressure для Half Duplex

Integrates address look-up engine, подержка 8K absolute MAC адресов

9K Jumbo Frame поддерживается на всех скоростях (10/100/1000Mbps)

Авто address learning и address aging

Аппаратные характеристики

Аппаратное 10/100Мбит / с, half / full duplex и 1000Mbps full duplex режим, flow control и auto-negotiation и auto-MDI/MDI-X

Features Store-and-Forward mode with wire-speed filtering and forwarding rates

IEEE 802.3x flow control for full duplex operation and back pressure for half duplex operation

Integrates address look-up engine, supporting 4K absolute MAC addresses

192 KB packet buffer

9K Jumbo frame 1000Mbps поддерживает дуплексный режим

Automatic address learning and address aging

Поддержка CSMA/CD-протокол



RJ-45 Interface

  • Complies with IEEE 802.3, 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-T
  • 9-Port 10/100/1000Mbps Gigabit Ethernet Switch
  • 8-Port supports 51V DC power to PoE Powered Device (Port 1 to port 8)

Power over Ethernet

  • Complies with IEEE 802.3af / 802.3at Power over Ethernet End-Span PSE
  • 120-watt PoE budget
  • Up to 8 IEEE 802.3af devices powered
  • Supports PoE Power up to 15.4 watts for each PoE port
  • Up to 4 IEEE 802.3at devices powered
  • Supports PoE Power up to 30 watts for each PoE port
  • Auto detects powered device (PD)
  • Circuit protection prevents power interference between ports
  • Remote power feeding up to 100m

Switching

  • Hardware based 10/100Mbps, half / full duplex and 1000Mbps full duplex mode, flow control and auto-negotiation and auto MDI/MDI-X
  • Features Store-and-Forward mode with wire-speed filtering and forwarding rates
  • IEEE 802.3x flow control for full duplex operation and back pressure for half duplex operation
  • Integrates address look-up engine, supporting 4K absolute MAC addresses
  • 192 KB packet buffer
  • 9K Jumbo frame supports at 1000Mbps duplex mode
  • Automatic address learning and address aging
  • Supports CSMA/CD protocol

Hardware

  • Made of metal, desktop size and wall-mount design
  • LED indicators for system power, PoE usage 100%, per port PoE In-Use (Port 1 to port 8), per port Link / Act (10/100/1000Mbps, port 1 to port 9).
  • 51V DC, 2.5A external power adapter
  • FCC, CE Class A compliant
