XGSW-28040HP Planet Коммутатор L2+ 24-Port 10/100/1000Mbps 802.3at PoE + 4-Port 10G SFP+ Managed Switch with Hardware Layer3 IPv4/IPv6 Static Routing

XGSW-28040HP Planet Коммутатор L2+ 24-Port 10/100/1000Mbps 802.3at PoE + 4-Port 10G SFP+ Managed Switch with Hardware Layer3 IPv4/IPv6 Static Routing
72144.00 ₽
Производитель : Planet
Количество портов : 24

XGSW-28040HP - Управляемый коммутатор L2+ 24-Port 10/100/1000T 802.3at POE+ plus 4-port 10G SFP+ Managed Switches with Hardware Layer3 IPv4/IPv6 Static Routing, 440W POE Budget, ERPS Ring

Cost-effective 10Gbps Uplink Capacitated Managed PoE+ Switch for Large Surveillance Applications

The XGSW-28040HP is the latest generation of PLANET Managed Gigabit PoE Switches featuring PLANET intelligent PoE functions to improve the availability of critical business applications. It provides IPv6/IPv4 Layer 3 static routing and built-in L2/L4 Gigabit Switching engine along with 24 10/100/1000Base-T ports featuring 30-watt 802.3at PoE+, 4 Gigabit SFP fiber slots and 4 10Gbps SFP+ fiber slots. With total power budget up to 440 watts for different kinds of PoE applications, it provides a quick, safe and cost-effective Power over Ethernet network solution to IP security surveillance for small businesses and enterprises.

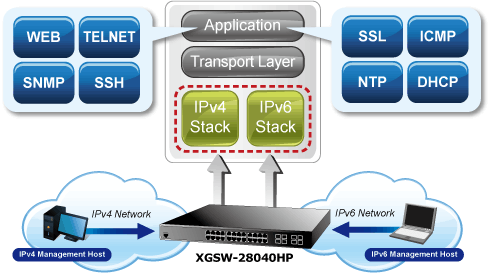

Solution for IPv6 Networking

Faced with the increasingly large number of IP cameras and wireless APs deployed in all kinds of applications, more and more network facilities start to support the IPv6 protocol for the next-generation networking. By supporting IPv6 / IPv4 dual stack and plenty of management functions with easy and friendly management interfaces, the XGSW-28040HP is the best choice for IP surveillance, VoIP and wireless service providers to connect with the IPv6 network. It also helps the SMB to step in the IPv6 era with the lowest investment but not need to replace the network facilities while the ISP constructs the IPv6 FTTx edge network.

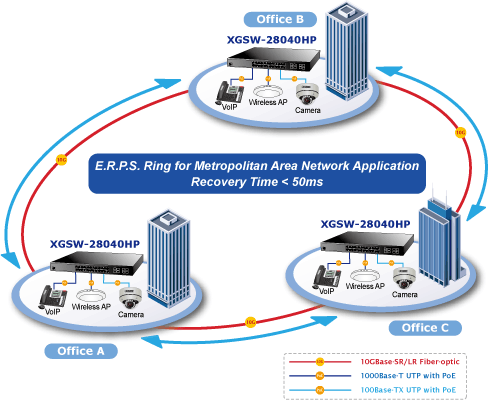

Redundant Ring, Fast Recovery for Metropolitan Area Network
The XGSW-28040HP supports redundant ring technology and features strong rapid self-recovery capability to prevent interruptions and external intrusions. It incorporates advanced ITU-G.8032 Ethernet Ring Protection Switching technology and IEEE standard Multiple Spanning Tree Protocol (802.1s MSTP) into customer’s IP surveillance network to enhance system reliability and uptime in harsh factory environments. The XGSW-28040HP also protects customer’s network connectivity with switching recovery capability that is used for implementing fault tolerant ring and mesh network architectures. If the network was interrupted accidentally, the fault recovery times could be less than 50ms to quickly bring the network back to normal operation.

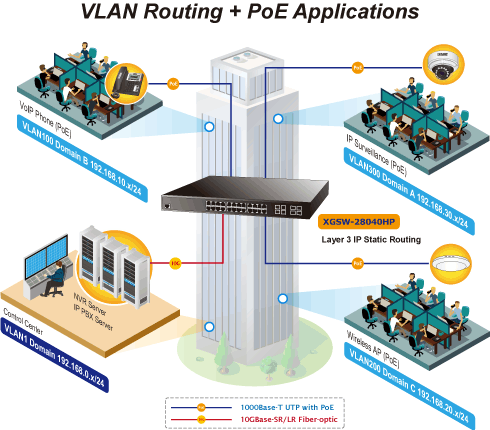

Layer 2+ VLAN Static Routing and PoE Application

The XGSW-28040HP features both IEEE 802.3af and High Power IEEE 802.3at Power over Ethernet (PoE) that combine up to 30-watt power output per port, and PoE budget is up to 440 watts which can deploy up to 24 PoE PD devices. With the built-in robust IPv4 / IPv6 Layer 3 traffic routing protocols, the XGSW-28040HP ensures reliable routing between VLANs and network segments. The routing protocols can be applied by VLAN interface with up to 128 routing entries. The XGSW-28040HP is certainly a cost-effective and ideal solution for enterprises.







Основные характеристики



Количество портов коммутатора

24 x Ethernet 10/100/1000 Мбит/сек

Количество uplink/стек/SFP-портов и модулей


Максимальная скорость uplink/SFP-портов

10/100/1000 Мбит/сек

Внутренняя пропускная способность

128 Гбит/сек

Размер таблицы MAC адресов




Консольный порт




Поддержка Telnet


Поддержка SNMP




Статическая маршрутизация


Протоколы управления группами интернета



Поддержка IPv6


Поддержка стандартов

Auto MDI/MDIX, Power Over Ethernet, Jumbo Frame, IEEE 802.1p (Priority tags), IEEE 802.1q (VLAN), IEEE 802.1d (Spanning Tree), IEEE 802.1s (Multiple Spanning Tree)



PWR (зеленый), SYS (зеленый), кольцо (зеленый), Р. О. (зеленый)

PWR1 (зеленый), PWR2 (зеленый), FAN1 (зеленый), FAN2 (зеленый)

10/100/1000T Интерфейсы RJ45 (порт 1 порт 24):

10/100/1000мб / с LNK/ACT (зеленый)

PoE В Использовании (Оранжевый)

100/1000Mbps SFP Combo интерфейсов (порт 21 по 24 порта):

1000Mbps (зеленый), LNK/ACT (оранжевый)

1/10Gbps SFP+ интерфейсами (порт 25 порт 28):

10 Гбит / с LNK/ACT (зеленый), 1 Гбит / с LNK/ACT (оранжевый)

Требования К Электропитанию

100~240V AC, 50/60Hz

Потребляемая Мощность

502 Вт / 1712.8 BTU Макс.

Защита от электростатического разряда


Размеры (W x D x H)

 440 x 44 x 300 мм, высотой 1U



Дополнительная информация

4 порта 100/1000Base-X SFP совмещенные с портами 100Base-FX SFP, 4 порта 10GBase-SR/LR SFP+ совмещенные с портами 1000Base-SX/LX/BX SFP

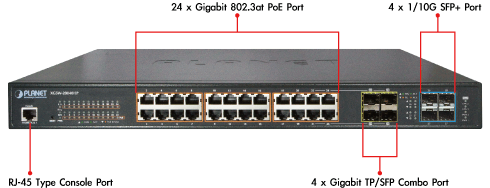

Physical Port

  • 24-Port 10/100/1000Base-T RJ45 copper with IEEE 802.3at / 802.3af Power over Ethernet Injector function
  • 4 100/1000Base-X mini-GBIC/SFP slot, shared with Port-21 to Port-24 compatible with 100Base-FX SFP
  • 4 10GBase-SR/LR SFP+ slot, compatible with 1000Base-SX/LX/BX SFP
  • RJ45 to RS-232 DB9 console interface for standard management and setup

Power over Ethernet

  • Complies with IEEE 802.3at High Power over Ethernet End-Span PSE
  • Complies with IEEE 802.3af Power over Ethernet End-Span PSE
  • Up to 24 ports of IEEE 802.3af / 802.3at devices powered
  • Supports PoE Power up to 30.8 Watts for each PoE port
  • Auto detects powered device (PD)
  • Circuit protection prevents power interference between ports
  • Remote power feeding up to 100 meters
  • PoE Management

- Total PoE power budget control

- Per port PoE function enable/disable

- PoE Port Power feeding priority

- Per PoE port power limitation

- PD classification detection

- PD alive-check

- PoE schedule

- PD power recycling schedule

Layer 2 Features

  • Prevents packet loss with back pressure (half-duplex) and IEEE 802.3x pause frame flow control (full-duplex)
  • High performance of Store-and-Forward architecture and runt/CRC filtering eliminates erroneous packets to optimize the network bandwidth
  • Storm Control support

- Broadcast / Unicast / Unknown-unicast

  • Supports VLAN

- IEEE 802.1Q Tagged VLAN

- Up to 255 VLANs groups, out of 4095 VLAN IDs

- Provider Bridging (VLAN Q-in-Q) support (IEEE 802.1ad)

- Private VLAN Edge (PVE)

- Protocol-based VLAN

- MAC-based VLAN

- IP Subnet-based VLAN

- Voice VLAN

  • Supports Spanning Tree Protocol

- STP, IEEE 802.1D Spanning Tree Protocol

- RSTP, IEEE 802.1w Rapid Spanning Tree Protocol

- MSTP, IEEE 802.1s Multiple Spanning Tree Protocol, spanning tree by VLAN

- BPDU Guard

  • Supports Link Aggregation

- 802.3ad Link Aggregation Control Protocol (LACP)

- Cisco ether-channel (Static Trunk)

- Maximum 14 trunk groups, up to 8 ports per trunk group

- Up to 16Gbps bandwidth (full duplex mode)

  • Provides Port Mirror (many-to-1)
  • Port Mirroring to monitor the incoming or outgoing traffic on a particular port
  • Loop protection to avoid broadcast loops

Layer 3 IP Routing Features

  • Supports maximum 128 static routes and route summarization

Quality of Service

  • Ingress Shaper and Egress Rate Limit per port bandwidth control
  • 8 priority queues on all switch ports
  • Traffic classification

- IEEE 802.1p CoS

- TOS / DSCP / IP Precedence of IPv4/IPv6 packets

- IP TCP/UDP port number

- Typical network application

  • Strict priority and Weighted Round Robin (WRR) CoS policies
  • Traffic-policing policies on the switch port
  • DSCP remarking


  • Supports IGMP Snooping v1, v2 and v3
  • Supports MLD Snooping v1 and v2
  • Querier mode support
  • IGMP Snooping port filtering
  • MLD Snooping port filtering
  • MVR (Multicast VLAN Registration)


  • IEEE 802.1X Port-based / MAC-based network access authentication
  • IEEE 802.1X Authentication with Guest VLAN
  • Built-in RADIUS client to cooperate with the RADIUS servers
  • RADIUS / TACACS+ users access authentication
  • IP-based Access Control List (ACL)
  • MAC-based Access Control List (ACL)
  • Source MAC / IP address binding
  • DHCP Snooping to filter distrusted DHCP messages
  • Dynamic ARP Inspectiondiscards ARP packets with invalid MAC address to IP address binding
  • IP Source Guard prevents IP spoofing attacks
  • IP address access management to prevent unauthorized intruder


  • Switch Management Interfaces

- Console / Telnet Command Line Interface

- Web switch management

- SNMP v1, v2c, and v3 switch management

- SSH / SSL secure access

  • Four RMON groups (history, statistics, alarms and events)
  • IPv6Address / NTP management
  • Built-in Trivial File Transfer Protocol (TFTP) client
  • BOOTP and DHCP for IP address assignment
  • Firmware upload / download via https / TFTP
  • DHCP Relay and Option 82
  • User Privilege levels control
  • NTP (Network Time Protocol)
  • Link Layer Discovery Protocol (LLDP)
  • SFP-DDM (Digital Diagnostic Monitor)
  • Cable Diagnostic technology provides the mechanism to detect and report potential cabling issues
  • ICMPv6 / ICMPv4 Remote Ping
  • Reset button for system reboot or reset to factory default
  • SMTP / Syslog / SNMP Trap remote alarm
  • System Log
  • PLANET Smart Discovery Utility for deploy management

Redundant Data Protection

  • ITU-T G.8032 Ethernet Ring Protection Switching
